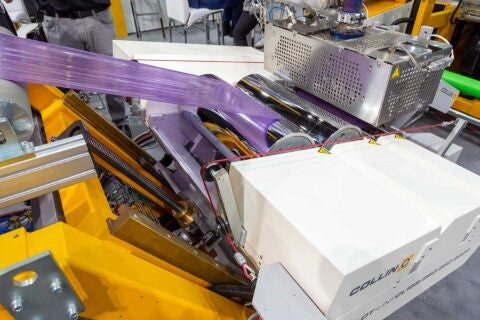

Two and three-roll calender for high-precision films
For the production of films with extremely low wall thickness tolerances. The gaps between the rolls can be measured or controlled with lowest tolerances and high measuring accuracy.
Laminating calender
COLLIN calenders are used for refining films and sheets by laminating or contact laminating. Complete lines can be designed for: take-off – pre-treatment – pre-heating – calendering – refining – laminating – cooling – cutting – winding
Refining calender
The smoothing calender is used for smoothing thick-walled films or sheets or for embossing, coating and laminating. A swivelling and height-adjustable group of three rolls allows the adaptation to all common processing technologies. Heating is realised either by hot water or oil. Moreover, there is an electric roll heating of up to 450°C.
Roll diameter
- From 144 mm to 250 mm
- On request, larger diameters are available
Advantages
- Different operating modes possible
- Easy retrofit to another operating mode
- Quick roll change
- 2 speed levels
- Highest rotation accuracy
- Low wall thickness tolerances
- 2 or 3 rolls – swivelling and height adjustable
- High precision
Materials
- PVC
- Polyolefins
- PU
- Polymeric carbonate
- Numerous technical polymers
Application
- Laboratory operation, test series, research & development
- Production of special films – Upscaling
- Calendering, laminating, smoothing, refining, extrusion coating
Control
The control includes a 10“touch screen (CMI 10), function keys, a data wheel and an emergency stop button. The control has an interface to the optionally available software Visual FECON.
Customers
- Raw material manufacturers
- Compounding and refining companies
- Processing companies
- Universities and institutes
