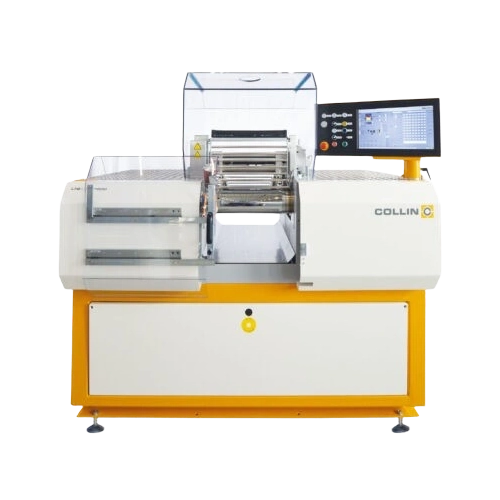

Roll Mills M Measuring – production control, R&D

Roll Mills M Measuring – production control, R&D

Extruders Australia takes pride in presenting our cutting-edge Laboratory Line, meticulously crafted to cater to the dynamic needs of the modern laboratory landscape. Our Laboratory Line of products stands as a testament to innovation, boasting a compact and sturdy design that seamlessly integrates with the demands of laboratory spaces. Built with the laboratory environment in mind, our products ensure not only reliability but also the ease of transportation, reflecting our commitment to enhancing your operational efficiency. With our Laboratory Line, we offer you a tailored solution that embodies both functionality and versatility, empowering your pursuit of scientific excellence.

Get a Quote View full details

COLLIN Roll Mills M Measuring are essential for all processes in development and production control.

The accuracy of the setting parameters and the large number of measuring devices allow a reproducible determination of characteristic material data, whereby the creation of optimal setting parameters for all production machines is supported.

If desired, gap measurements and controls as well as a design of a high-temperature version of up to 450°C are possible.

Advantages

  • Reproducibility
  • Large number of integrated measuring devices
  • Many options

Materials

  • Thermoplastics
  • Elastomers
  • Masterbatch
  • PVC

High-temperature version: up to 450°C

Application

  • Production
  • Laboratory – test, trials
  • Small batch test
  • Quality control

Control

The control runs via a 7″ touch display (CMI 7) with operating buttons as well as data wheel and allows manual and automatic operation of the roll mill.

  • Display of all functions with set and actual values
  • Value display tabularly, graphically or as bar diagram
  • Large display of important process values
  • Operating buttons for all machine functions
  • Possibility of recipe management
  • Error and fault messages
  • Language selection
  • Ethernet connection, as option

Customers

  • Raw material manufacturers
  • Compounding and refining companies
  • Processing companies
  • Universities and institutes
  • Pharmaceutical companies
  • Companies in the medical sector
Product Specification
Parameters / Roll Mills W 150 M W 150 MR
Roll diameter x roller width 150 x 400 mm 150 x 400 mm
Max. torque per roll 668 Nm 1.435 Nm
Gap fine adjustment 0.08-2.99 mm 0.08-9.99 mm
