Strand Pelletizers – cutting of plastomer strands

Strand Pelletizers – cutting of plastomer strands

Extruders Australia takes pride in presenting our cutting-edge Laboratory Line, meticulously crafted to cater to the dynamic needs of the modern laboratory landscape. Our Laboratory Line of products stands as a testament to innovation, boasting a compact and sturdy design that seamlessly integrates with the demands of laboratory spaces. Built with the laboratory environment in mind, our products ensure not only reliability but also the ease of transportation, reflecting our commitment to enhancing your operational efficiency. With our Laboratory Line, we offer you a tailored solution that embodies both functionality and versatility, empowering your pursuit of scientific excellence.

Get a Quote View full details

Strand pelletizers are used for cutting thermoplastic plastic strands.

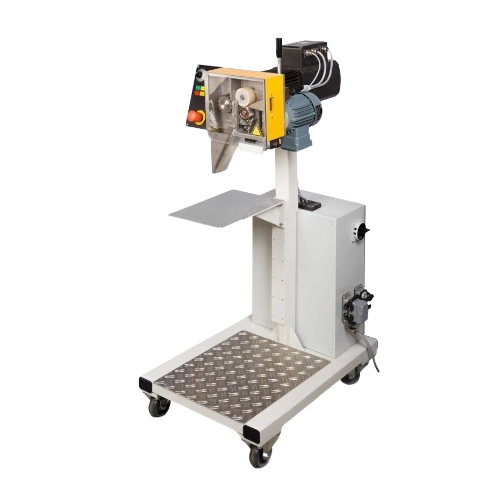

Strand pelletizers

The COLLIN strand pelletizer basic system has one drive – for a pre-defined pellet length of approx. 3 mm.

The strand pelletizer with two independent, variable drives enables the stepless adjustment of the pellet length from 0.8 up to 5 mm.

Moreover, COLLIN offers pelletizers, which are designed for more than two strands and for a higher take-off speed.

Advantages

  • Compact system
  • Variable in design resp. drive

Depending on the customer requirements, underwater as well as die face pelletizers can be delivered:

Underwater Pelletizing Systems (UWP)

With this system, the polymer is directly cut at the die plate under water. Together with the water, the pellets are guided into the drying system, in which the water is separated from the pellets. The water system is tempered in order to enable a constant process. The pelletizer includes die plate, cutting device and the tempered water system. As option, COLLIN offers a polymer diverter valve.

The compact unit is mounted on a moveable frame and, by a clamping flange, it can easily be connected with the extruder.

The die plates are available in different die designs and heatings.

Advantages

  • Wide viscosity range can be pelletized
  • Less dust
  • Micro-pellets are possible
  • Low noise level

Die face pelletizer air-cooled (AP)

With this system, the polymer is directly cut at the outlet of the die plate. In contrast to the underwater pelletizing system, COLLIN uses a blower for creating an air flow in order to transport the pellets into a cyclone. The system includes a die plate, cutting device and a cyclone. The complete unit is mounted on a moveable frame and by a clamping flange, it can easily be connected with the extruder.

Advantages

  • Compact system
  • Low operating pressure
  • Easy and quick cleaning
  • Visibility of the cutting process – transparent window
  • autarkic – stand-alone machine

Materials

  • Plastomers
  • Hydrophobic materials

Application

  • Laboratory operation, trials, research & development
  • Masterbatch production
  • Quality control

Customers

  • Raw material manufacturers
  • Masterbatch manufacturers
  • Compounding and refining companies
  • Processing companies
  • Universities and institutes
  • Pharmaceutical companies
  • Companies in the medical sector
Product Specification
Parameters / Pelletizer SP 1 SP 2 UWP AP
Take-off speed or with increased speed: 7 – 70 m/min 3 – 36 m/min 3 – 36 m/min
Max. number of strands 1 -2 1 -2
Pellet size (diameter x length) approx. 3 mm x 3 mm approx. 3 mm x 0,8 to 5 mm 3-4 mm 3 mm
Max. throughput 15 kg/h (bwith one strand) approx. 15 kg/h (with one strand) max. 20 kg/h max. 20 kg/h
