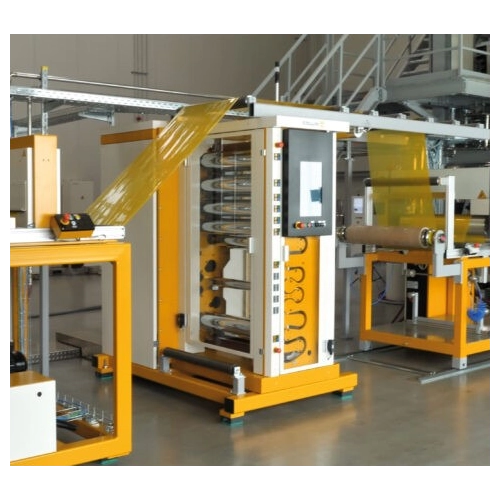

Stretching Lines MDO – high-performance stretching lines for pilot productions

Stretching Lines MDO – high-performance stretching lines for pilot productions

Extruders Australia proudly presents the Pilot Line, a visionary solution meticulously designed for pilot projects and small businesses. With a focus on modularity, scalability, and efficiency, our Pilot Line stands as a versatile asset that adapts seamlessly to your evolving needs. Crafted to empower experimentation and growth, our Pilot Line offers a blueprint for success, allowing pilot projects and small businesses to navigate the landscape of innovation with confidence. Whether you're embarking on a new venture or seeking to optimize existing processes, our Pilot Line provides the cornerstone for progress, enabling you to chart a course toward business excellence.

Get a Quote View full details

The stretching of polymer films improves their characteristics in many ways. COLLIN offers laboratory and pilot lines for stretching films for a wide range of thermoplastic materials and compounds. These lines are used for quality control and for the development of new products and processes. They can also be used for the production of narrow films.

High variability is also shown by the option of one or two stretching gaps. Due to the compact design, the film can easily be threaded.

Design of a COLLIN stretching line:

  • Extrusion group
  • Stretching unit
  • Take-off
  • Winder

Advantages

  • Improved film characteristics
  • Extension of the application possibilities of the film
  • Optimisation of mechanical characteristics such as tensile strength, stretching as well as barrier effect against different media
  • Compact design
  • Film can manually be threaded
  • Comfortable cleaning

Variability

  • Selection between 1 or 2 stretching gaps
  • Use of 7 drives for 1 stretching gap and 10 drives for 2 stretching gaps for optimal graduation of friction and speed
  • Variation of the length of the stretching gap
  • Variation of the gap of the contact rolls
  • Selection of the temperature of all roll groups

High variability is also shown by the option of one or two stretching gaps:

MDO Single Stretching Unit
A variety of polymers, especially PP, PE but also PA is monoaxially stretched in order to considerably improve the mechanical, optical and barrier characteristics. The stretching essentially occurs in the short gap procedure in one stretching gap with adjustable length of the stretching gap.

MDO Dual Stretching Unit
This system of a two-gap stretching line was developed in industry for the production of breathable films. The special feature of these films is a high percentage of mineral fillers. This task requires a special design of the machine and modified processing parameters.

Applications

  • Short-gap stretching for films, e.g., made of PP and PE
  • Long-gap stretching with IR additional heating for films, e.g., made of PET

Materials

  • Thermoplastic materials and compounds such as PP, PE, PET, PA
  • Processing of high-tech polymers with temperatures of up to 400°C

Use

  • Product development
  • Quality control
  • Pilot production
  • Production of narrow films

Customers

  • All manufacturers of polyolefins (PP, PE) and PA
  • Processing companies in the stretch film sector
  • Manufacturers of mineral fillers, compounds and films for breathable applications
Product Specification
Parameters / MDO Stretching Unit MDO 800 single MDO 800 dual MDO 1000 single MDO 1000 dual
Roll width 800 mm 800 mm 1000 mm 1000 mm
Number of stretching gaps 1 2 1 2
Feed width film max. 750 mm 750 mm 950 mm 950 mm
