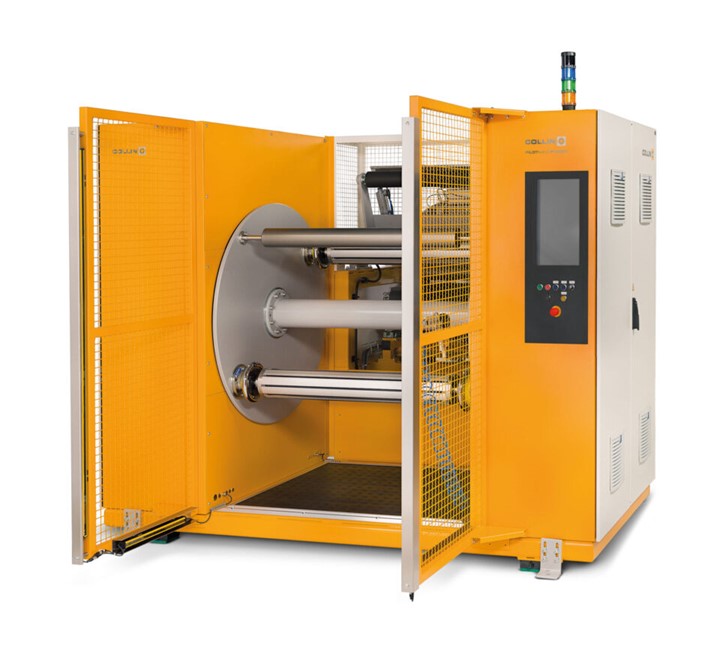

The innovative COLLIN turret winder convinces by the motor-driven lifting system of the bobbin, the modular design with positioning slide and cutting knife as well as by its compact style.
In laboratory and pilot operation, an optimal quality of the film bobbin is essential. On the one hand, in order to better predict the resulting characteristics of the film after winding and on the other hand, in order to guarantee the processability on production lines.
In contrast to classic production winders, here, versatility and flexibility are required. Different films or compounds, with a different thickness must perfectly be wound. Latest winding algorithms guarantee that different materials with different thicknesses, strengths and widths are perfectly wound.
Winding types
- Central winding
- Contact winding with adjustable pressure
- Gap winding with adjustable gap
Advantages
- Modular design with positioning slide and cutting knife
- Compact design
- Flexible regarding materials, thicknesses, strengths and widths
Winding material
- All types of flexible substrates
- Metal films
- Laminates
Control
- Touch screen PC on Windows basis as HMI with:
- Display of all functions with set and actual values
- Display of the values tabularly, graphically or as bar diagram
- Large display of important process values
- Control button for all machine functions
- Possibility of recipe management
- Error and fault messages
- language selection
- Screen size 17.3 inch
Application
Pilot productions, product development, small batch production
Customers
- Compounding and refining companies
- Processing companies
- Film manufacturers
- refining companies
