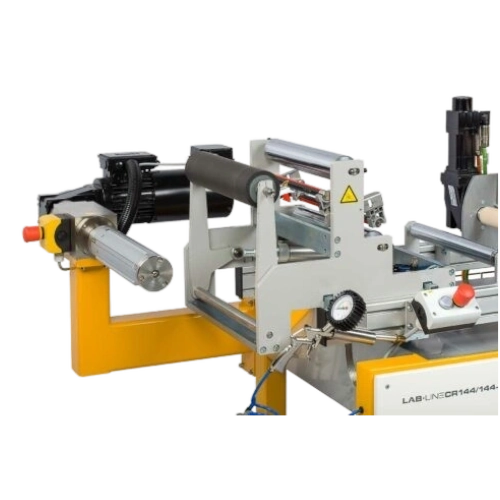

Winders – contact, central or gap winding

Winders – contact, central or gap winding

Extruders Australia takes pride in presenting our cutting-edge Laboratory Line, meticulously crafted to cater to the dynamic needs of the modern laboratory landscape. Our Laboratory Line of products stands as a testament to innovation, boasting a compact and sturdy design that seamlessly integrates with the demands of laboratory spaces. Built with the laboratory environment in mind, our products ensure not only reliability but also the ease of transportation, reflecting our commitment to enhancing your operational efficiency. With our Laboratory Line, we offer you a tailored solution that embodies both functionality and versatility, empowering your pursuit of scientific excellence.

Get a Quote View full details

There are different designs of COLLIN winders and all winders are designed according to the respective web speed. Our Lab Line winders are designed for a winding width of up to 600 mm.

Winder types

  • Simple central winder
  • Winder centrally powered by positioning roll
  •  Winder Type GAP with contact roll and web tension measurement: With this winding unit, there are three winding possibilities –central winding, contact winding with adjustable pressure and gap winding with adjustable gap (0 – 30 mm)

Advantages

  • High flexibility
  • Easy handling

Winding material

  • Flat films
  • Fleeces
  • Strands
  • Hoses

Application

Laboratory operation, test series, research & development

Customers

  • Raw material manufacturers
  • Compounding and refining companies
  • Processing companies
  • Universities and institutes
  • Pharmaceutical companies
  • Companies in the medical sector
Product Specification
Technical data W 200 E Central W 400 E Central W 600 E Central W 200 E Contact W 400 E Contact W 600 E Contact W 200 E Gap  W 400 E Gap W 600 E Gap
Roll/roller width 200 mm 400 mm 600 mm 200 mm 400 mm 600 mm 200 mm 400 mm 600 mm
Max. winding diameter 400 mm 400 mm 400 mm 400 mm 400 mm 400 mm 400 mm 400 mm 400 mm
Max. web speed 50 m/min 50 m/min 50 m/min 50 m/min 50 m/min 50 m/min 50 m/min 50 m/min 50 m/min
